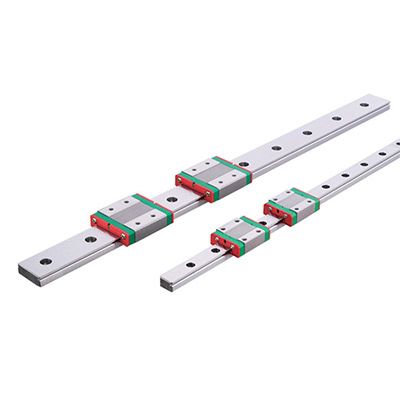

HIWIN MG Series Miniature Linear Guideway


  • Product Detail

    Model Number of MG Series
    MG Series linear guideway can be classified into non-interchangeable and interchangeable types, which are the same size.The interchangeable type is more convenient due to replaceable rails; however, the precision is less than non-interchangeable type. With strict dimension and quality control, the interchangeable type linear guideways are a suitable choice for customers when rails don’t need to be paired. The model number contains information for the size, type, accuracy, preload, and so on.

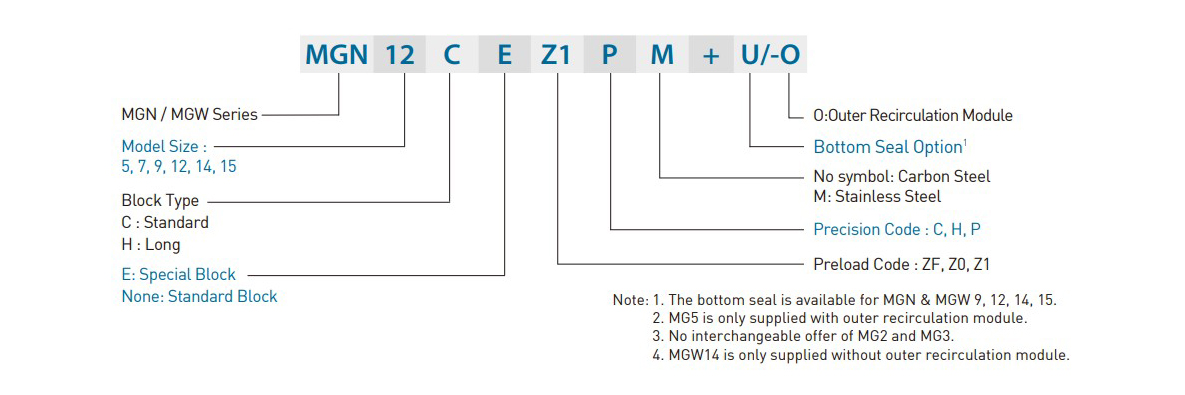

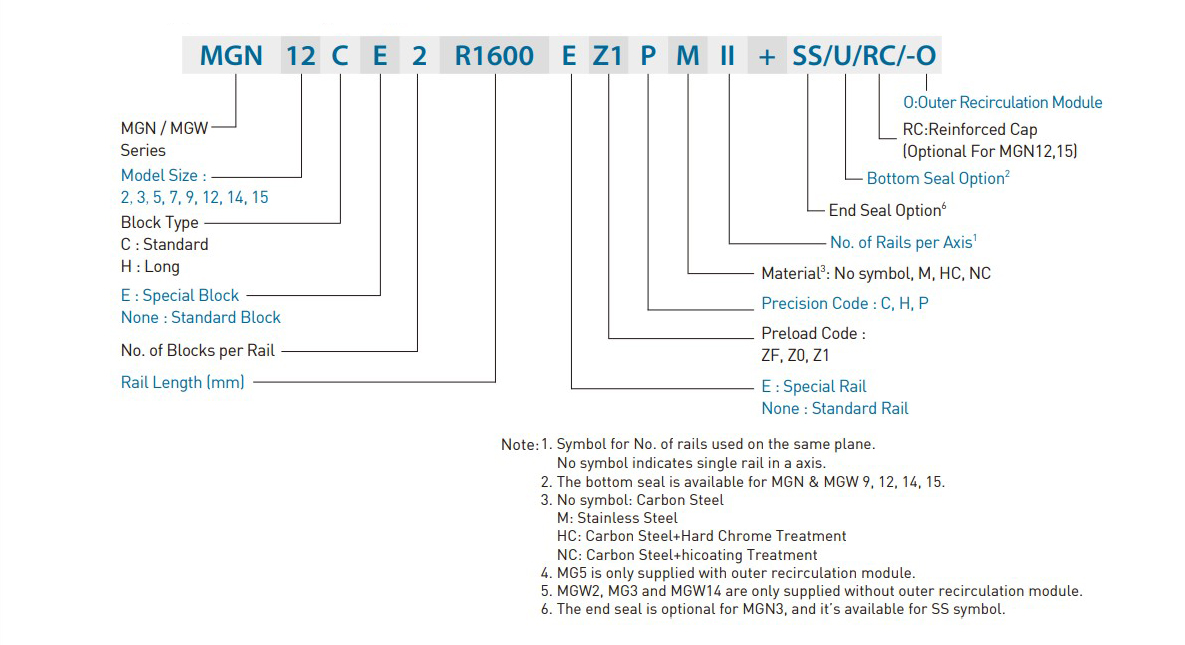

    Non-interchangeable type

    Interchangeable type

    Interchangeable Block

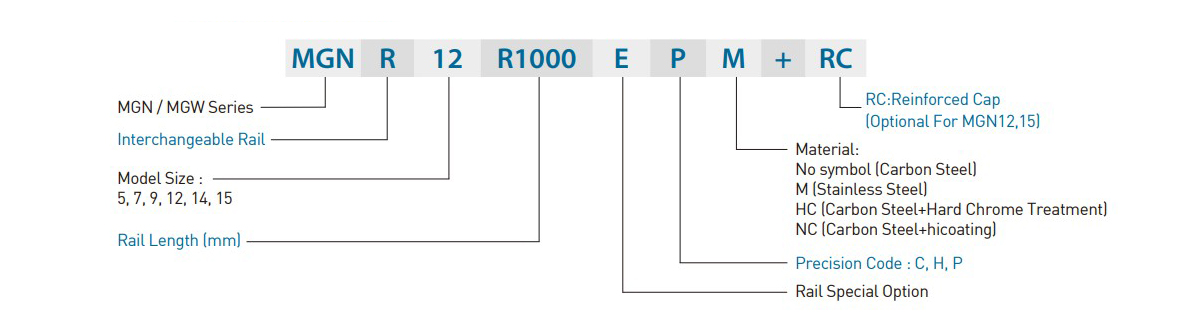

    Interchangeable Rail

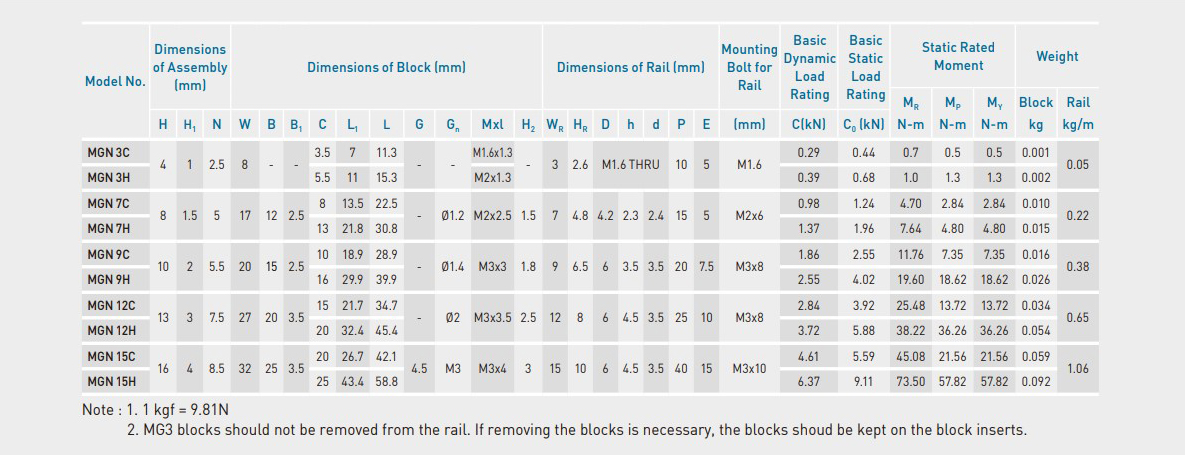

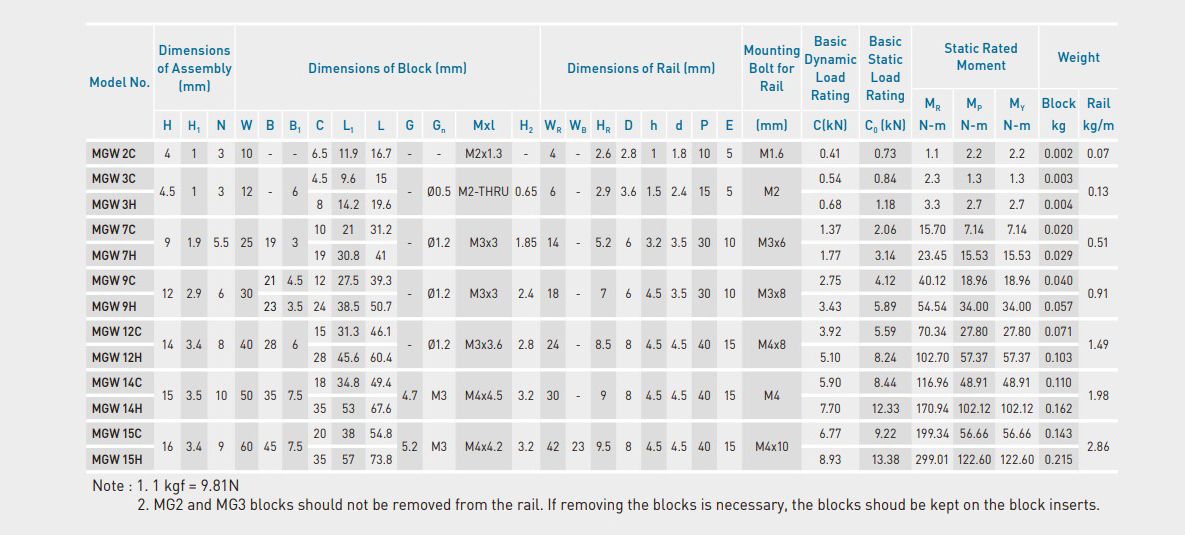

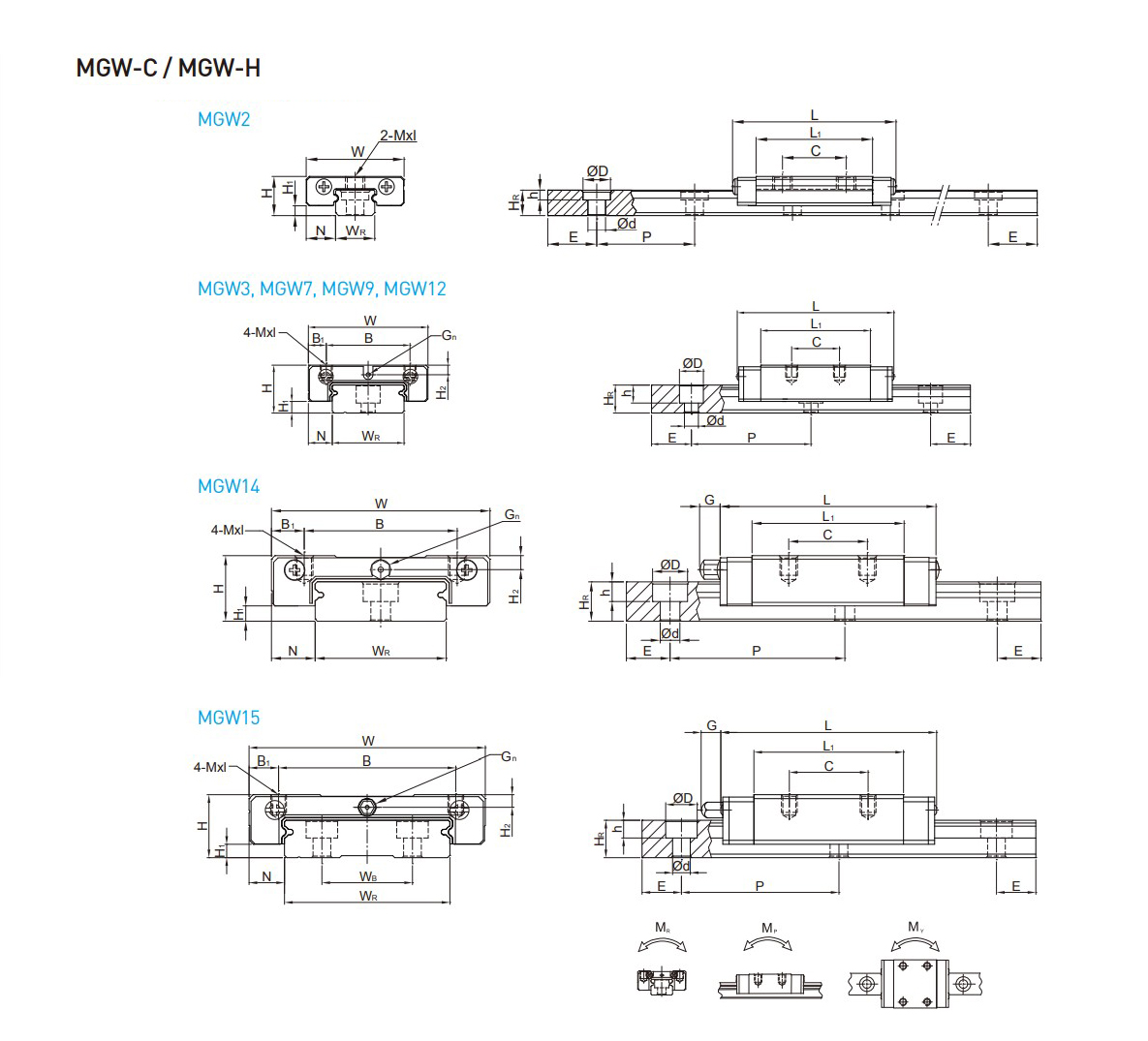

    Dimension
