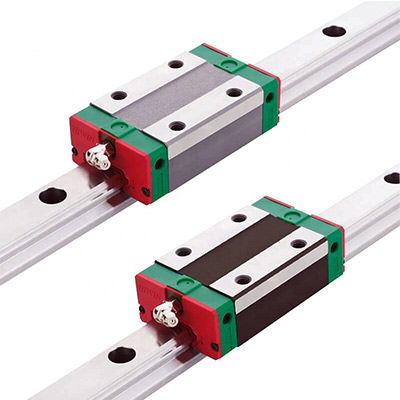

HIWIN EG Series Low Profile Ball Type Linear Guideway


Model Number of EG Series
EG series linear guideways are classified into non-interchangeable and interchangeable types. The sizes of these two types are the same as one another. The main difference is that the interchangeable type of blocks and rails can be freely exchanged and they can maintain P-class accuracy. Because of strict dimensional control, the interchangeable type linear guideways are a wise choice for customers when rails do not need to be matched for an axis. The model number of the EG series identifies the size, type, accuracy class, preload class, etc.

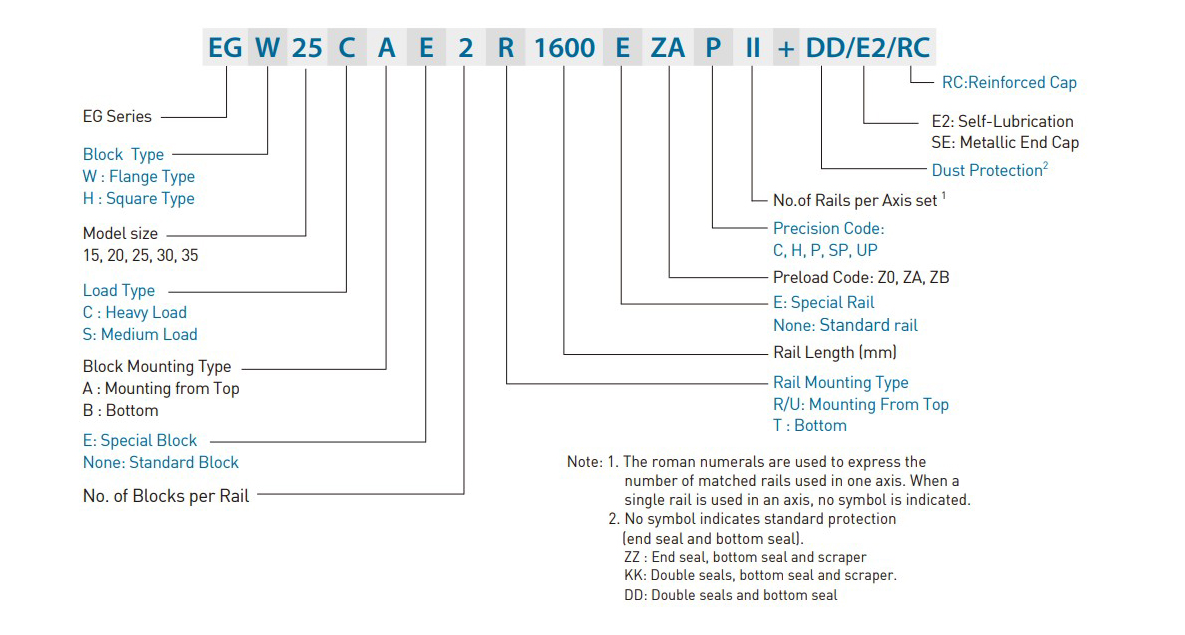

Non-interchangeable type

Interchangeable type

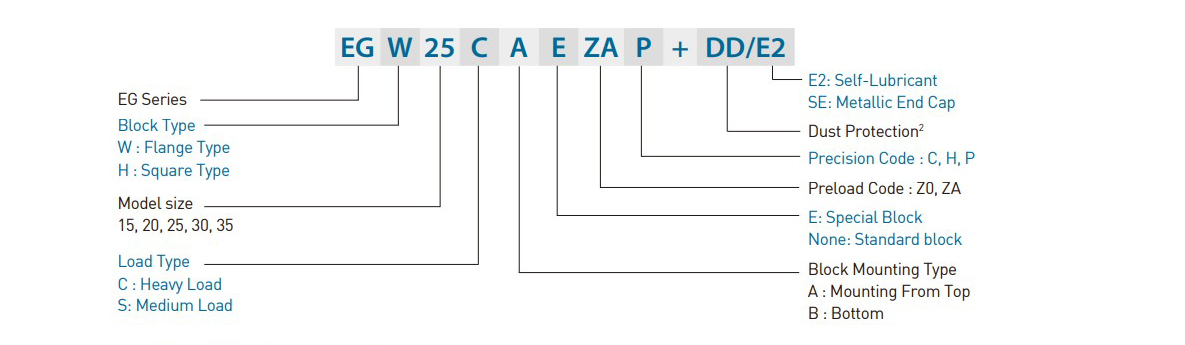

Model Number of EG Block

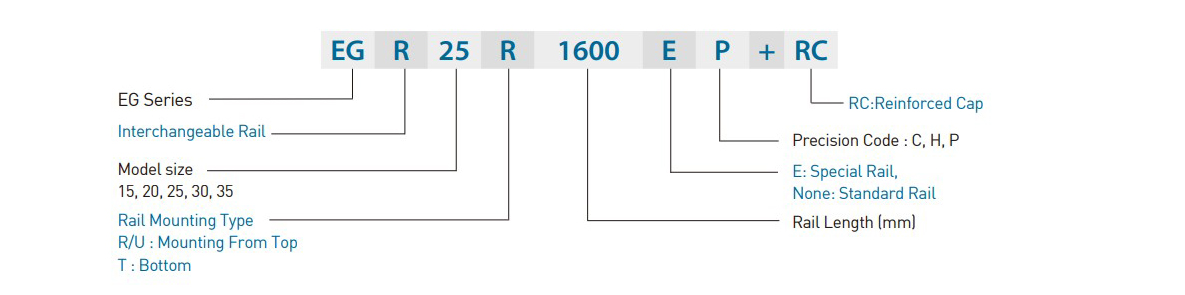

Model Number of EG Rail

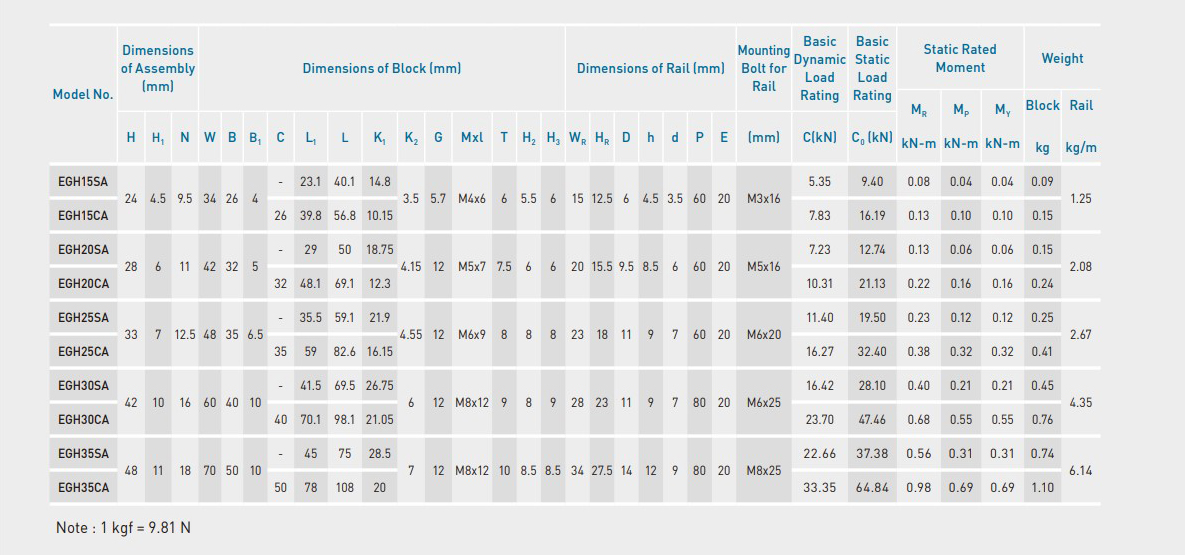

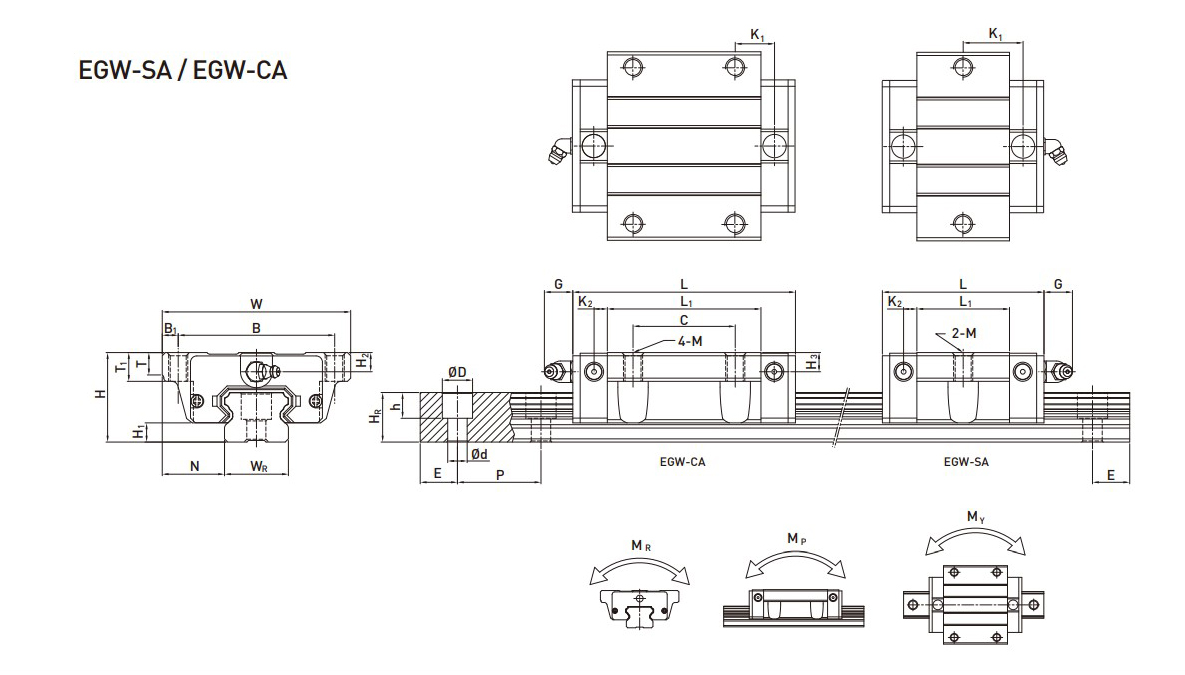

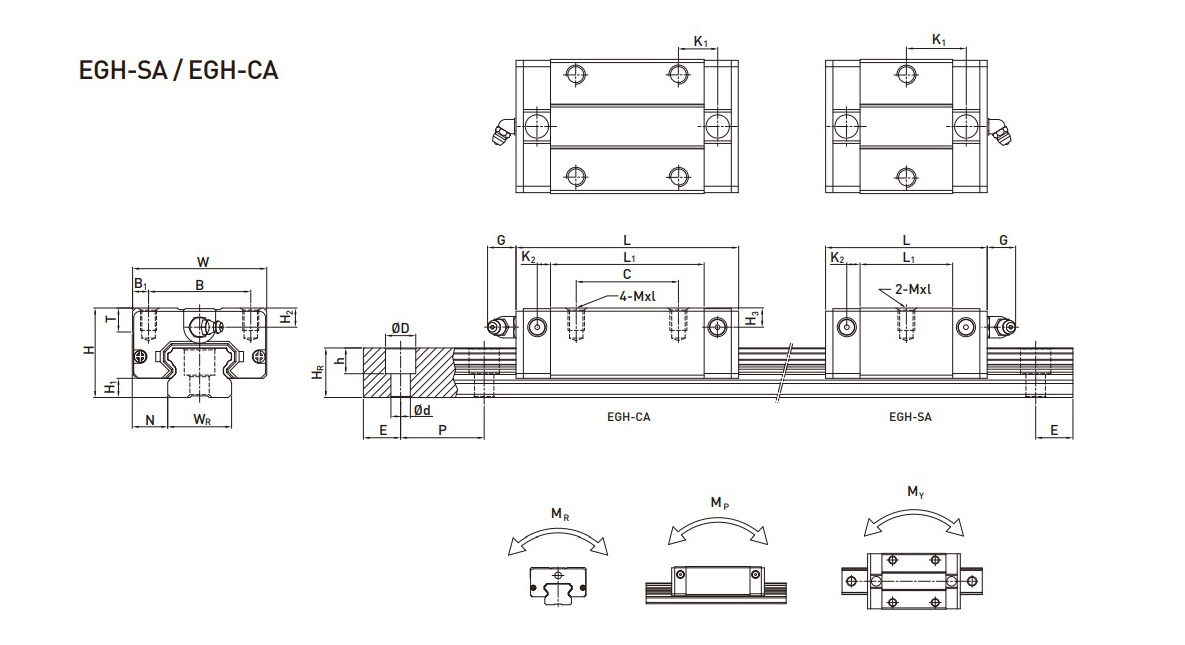

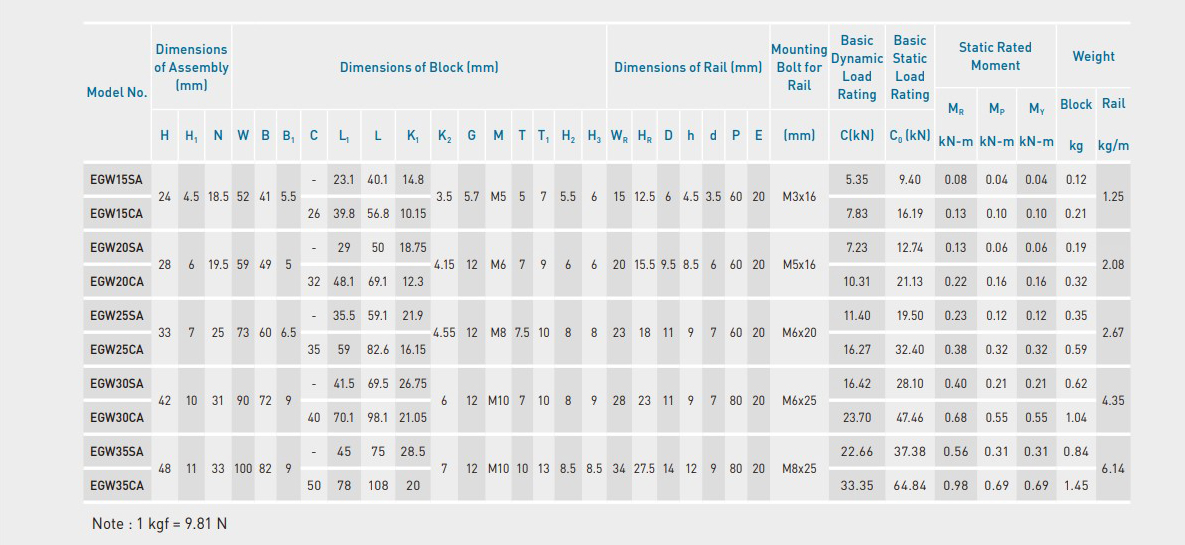

Demension
